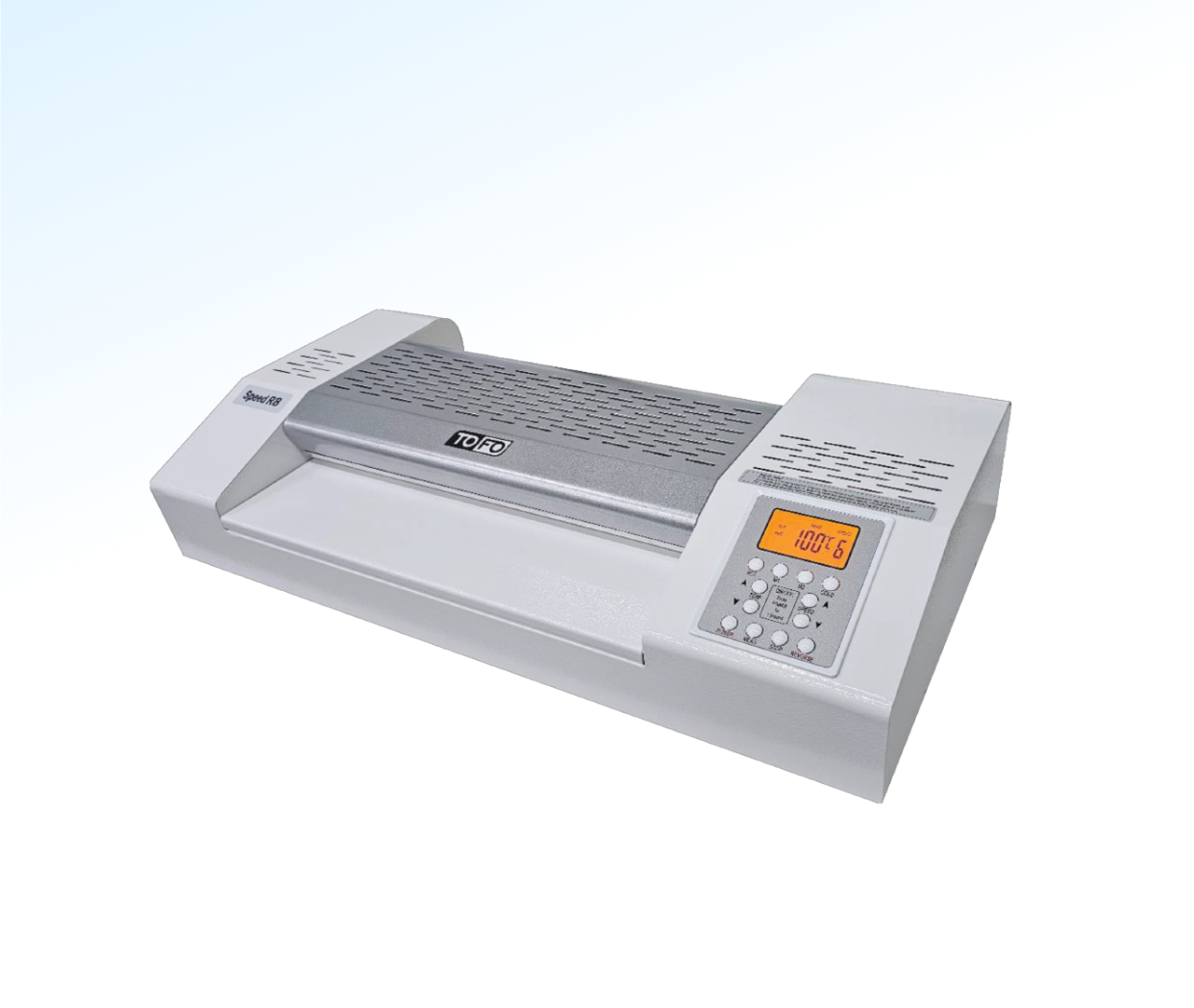

330R6

Pouch Lamination Machine

TOFO 330R6

pouch lamination machine
  • 6 Roller Heat System

    • 4 heated rollers + 2 cold rollers allow for a professional crystal-clear and bubble-free finish.

  • Removable Cover

    • Allows quick access to the rollers with easy to remove thumb screws.

  • Air Cooling System

    • Patented internal cooling system ensures the laminator stays cool tothe touch while in use.

  • Programmable Memory Settings

    • Memorize the ideal temperature & speed settings for your most frequently used pouches.

  • LCD Control Panel

    • Backlit LCD display with labeled keypad make it easy to operate.

Enquiry Download Brochure
Specification

Maximum Width 335mm (13.2")
Maximum Speed 1,350mm/min.
Maximum Laminating Film 1350mic. (14mil.)
Thickness of Mount 3mm
Heating System Heating Roller Internal Heater
Operation Temperature 0~140°C
Quantity of Roller 4 Heating Rollers + 2 Cold Rollers
Display LCD
Temperature Controller Yes
Speed Controller Yes
Reverse Switch Yes
Preheating Time 5 min.
Power Consumption 1,050watts
Dimension 535 x 270 x 140mm
Box Dimension 585 x 320 x 175mm
Weight 16.1kgs(N)/17.6kgs(G)
Pallet Packing 28 units/pallet
