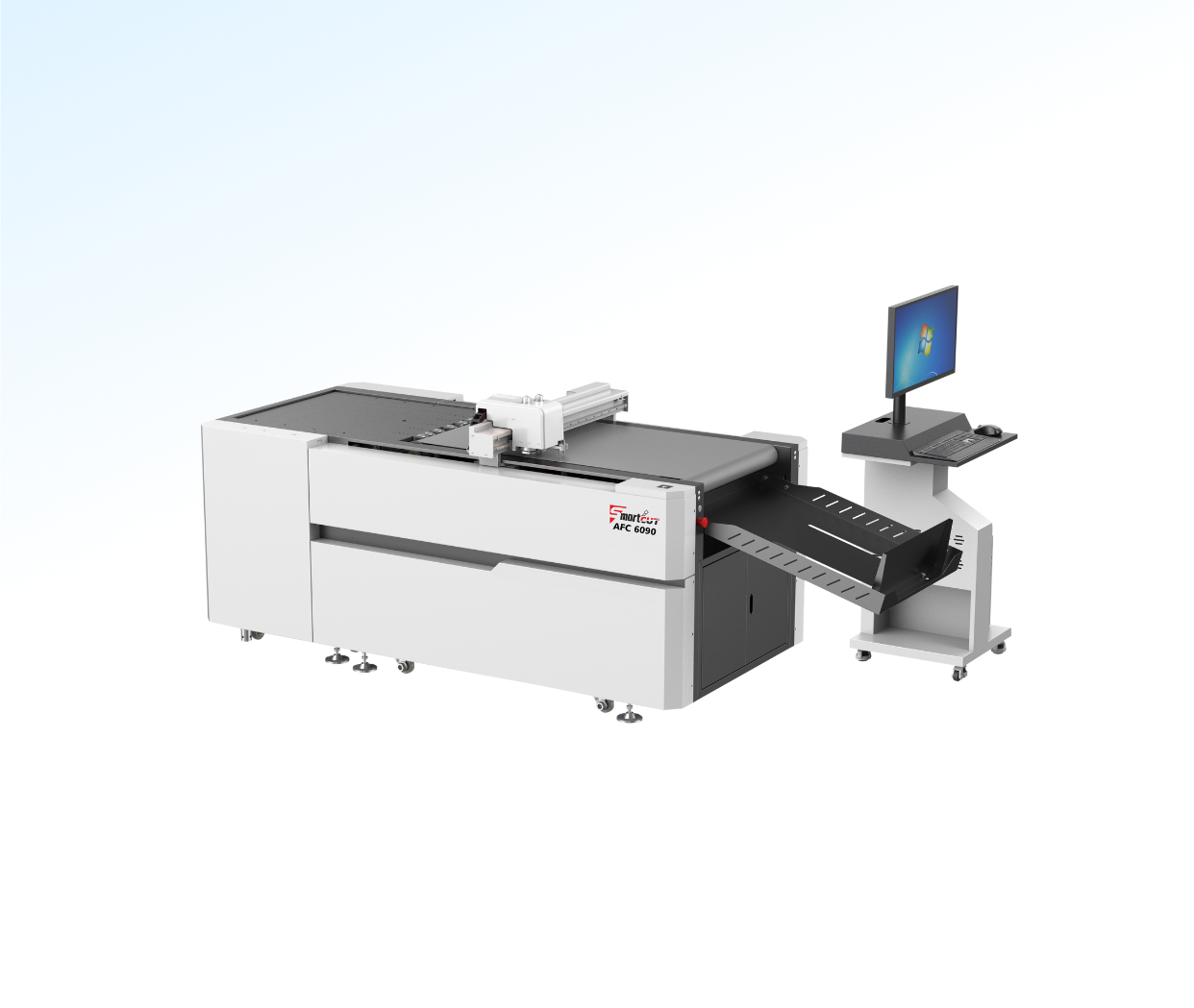

The Smartcut AFC 6090 Autofeed Flatbed Cutter is a high-performance digital cutting solution designed for the printing and packaging industries. It incorporates advanced features such as fully automatic vacuum suction and an automatic lifting and feeding platform for enhanced efficiency. Equipped with a range of precision tools, the machine is capable of performing Kiss-cut, Through-cut, Creasing, V-grooving, and marking with exceptional speed and accuracy. Ideal for short to medium-run customized jobs, it offers a cost-effective solution to meet diverse finishing requirements.
| Model | AFC-6090 |
| Overall dimension | 3250×1145×1200mm |
| Work area | 600×900mm |
| Autofeeder | Yes (included) |
| Work platform | Aluminum alloy honeycomb platform and conveying carpet |
| Max material processing height | ≤100mm (Depending on different materia) |
| Max cutting thikness | 0.1mm - 6mm |
| Applications | Applied to paper, card board, Vinyl, sticker reflective material used in advertising, corogated board, PVC sheet, form board, KT board, PVC sunboard, etc. |
| Beam height | 20mm |
| Beam height | 20mm |
| Material fixation method | Vacuum adsorption (included) |
| Max cutting speed | 1200mm/Sec. |
| QR code reader | Yes |
| QR code reader | Yes |
| Software | Included |
| Interface Connectivity | PCIE slot / Ethernet port |
| Positioning method | CCD camera, Red light |
| Repeatable cutting accuracy | ±0.1mm |
| Drive system | Servo motor, linear guide and Timing belt |
| Number of motor | 4pcs |
| Working Environment | Temp.: 00C-400C; Humidity : 20%-80%RH |
| Equipment power | 2.8Kw (220V/50Hz) |
| Vacuum pump power | 1.5Kw |
| Net Weight | 460Kg |
| Warranty | 12months |
