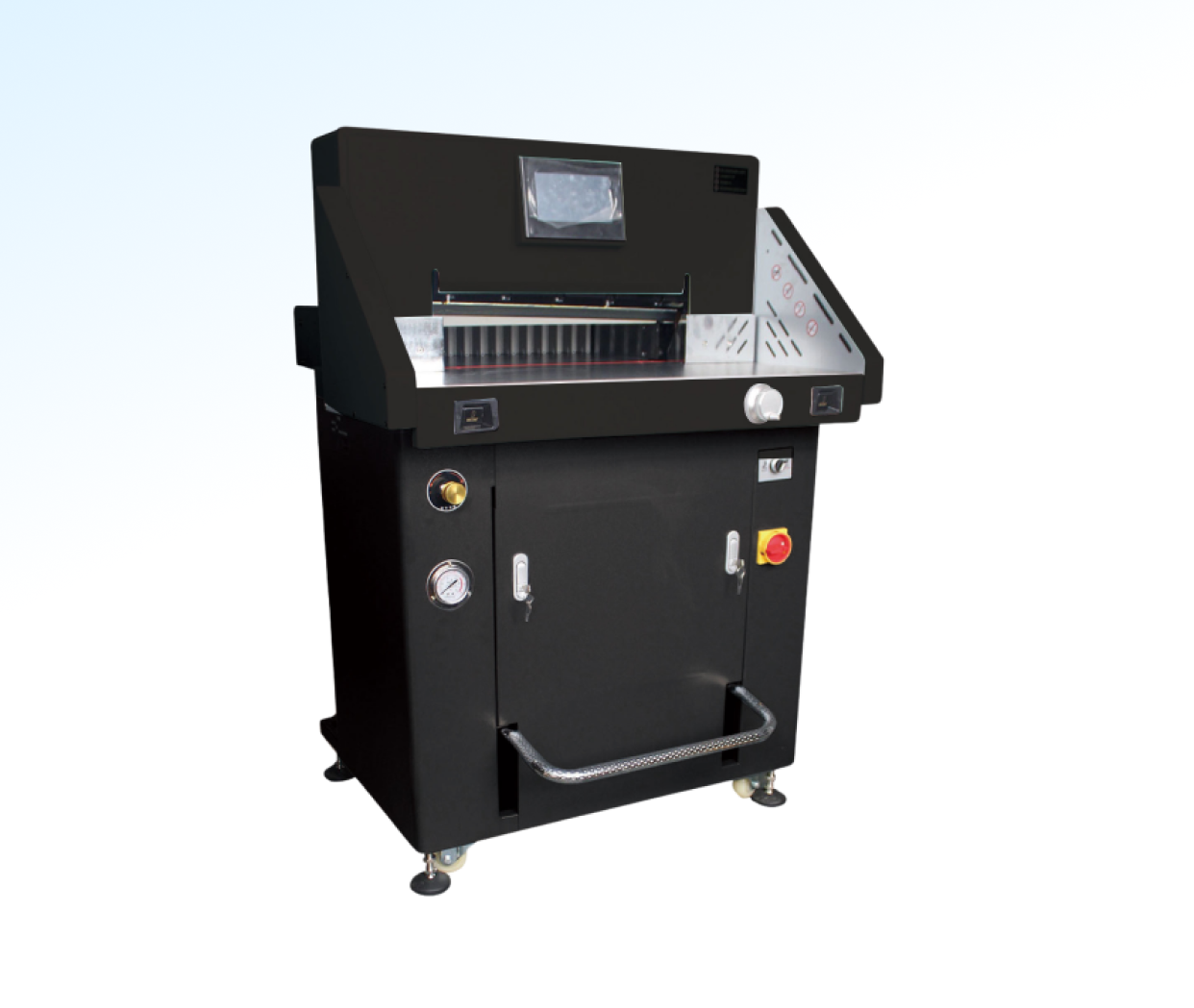

HC-6710

Hydraulic Paper Cutting Machine

SmartCut-HC-6710

Hydraulic Paper Cutting Machine

Two-way hydraulic valve set, independent hydraulic oil gauge display .

  • 10.1 Display Touch

  • 1100*1340*1460 Size(mm)

  • 500 Weight(kg)

  • 0.5mm / 1 mm Thickness

Performance introduction :

  • Heavy-duty structural design.
  • Deceleration without reducing force under the knife, adjustable speed throughout the process
  • Ultra-quiet, easy to work, office buildings.
  • Thickened knife holder, cutting without Foating knife.
  • Double-sided ball screw, double-sided hard axis, ligh rod linkage, push paper to ensure paper push Accuracy is not oblique.
  • Thickened 12mm coated platform with steel balls.
  • 10.1-inch touch screen, new UI design, more convenient human-computer interactionRear platform integrated casting, foldable patented technology.
  • Continuous oil supply for paper pressing, no need to hold pressure.
  • 6-channel infrared safety grating.
Model HC6710
Maximum cutting size ( m m ) 670*670
Maximum Cutting thickness (mm) 110
Minimum Cutting Size (mm) 30
Cutting accuracy (mm) +0.2
Paper Pressing Method Hydraulic + Mechanical Foot Path
Paper cutting method Path Hydraulic , Hydraulic
Display Touch 10.1 Touch
Power Supply Parameters 220V±10% 50hz 2.2kw
Size (mm) 1100*1340*1460
Weight (kg) 500
