UC-300

Label Cutter

SmartCut-UC300

Label Cutter

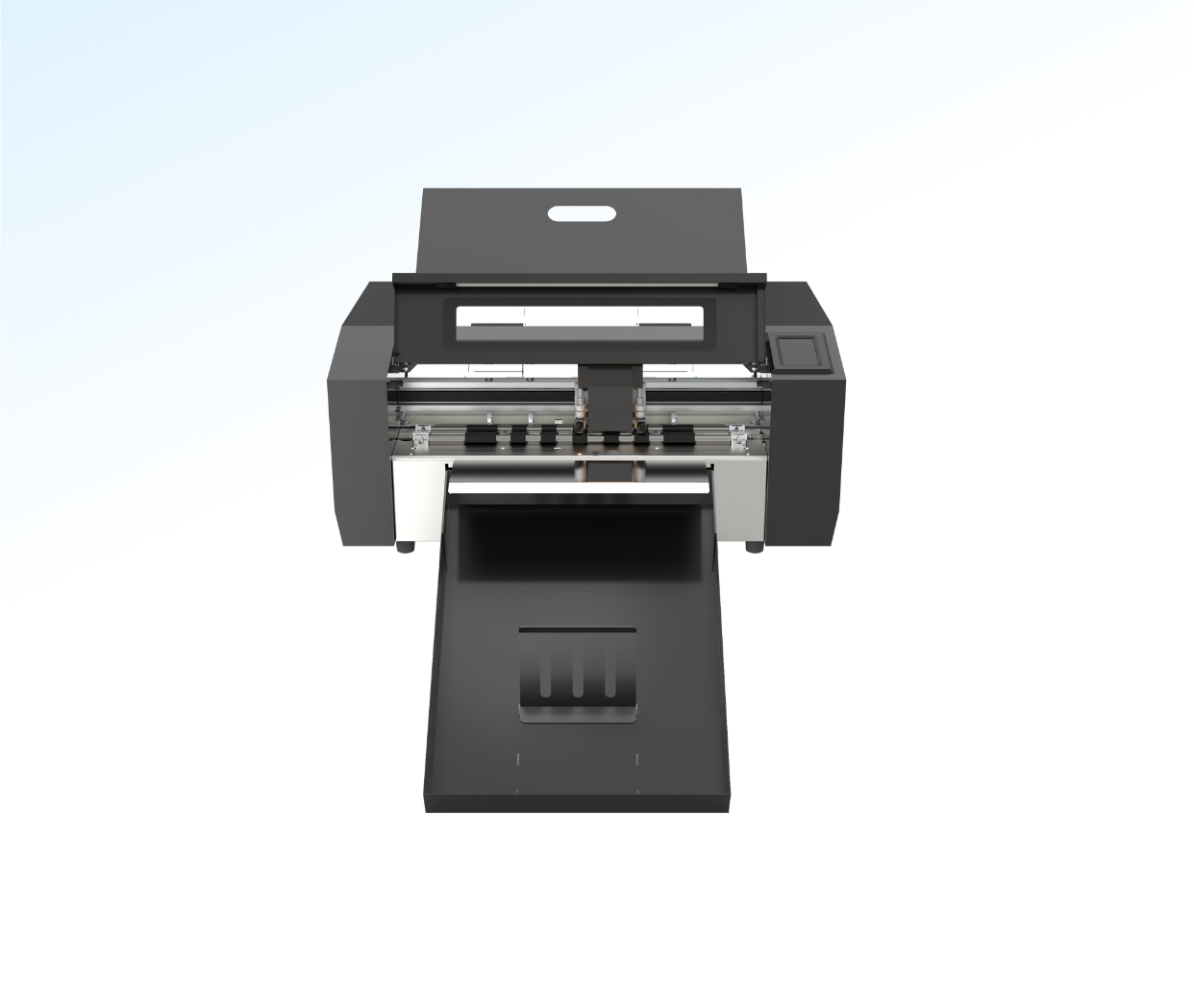

Smartcut Archives - Yog Services | Printer Sales & Service ...The Smartcut-UC300 is an automatic label cutting machine designed for various materials like paper, vinyl, and sticker sheets.

Details:
  • One key calibration machine offset value, save time proofreading machine, save paper.
  • Voice coil cutting system ensures stable and fast cutting, greatly improving productivity.
  • Quickly detect reference mark positioning and cutting patterns with the camera.
  • Automatic feeding system, save time and labor.
  • The cutter heads work simultaneously, while indentation and cutting.
Enquiry Download Brochure
Specification
Model UC300 Ultra Single Head
Maximum media Width 330 mm
Max Cutting Width 330 x 430 mm ( 13 x 19)
Auto Feeding quanitity 150 Pcs
Motor Servo Motor
Positioning mode CCD Camera
interface Pen Drive / USB / Lan / Wi (optional)
Power < 100W
Maximum standby speed 1500 mm/s
Maximum cut speed 1500 mm/s
Force 2000g
Accuracy +0.1 mm
Repeat positioning accuracy +0.082 mm
Power Supply(V/A) 220V 50 A
Working environment 5OC~35OC
Application Half cut (Kiss Cut), Full Cut upto 300 GSM
Cuttable material All Kind of self adhesive labels, printing graphics etc.
OS/Software Windows CP 7/8/10 Coreldraw & Illustrator Plug-in
Package Dimension (W × L × H) 77*505*410 (mm)
Certication CE / RoHS / Fcc
Warranty 1 Year
