UC-400

Sheet Cutter

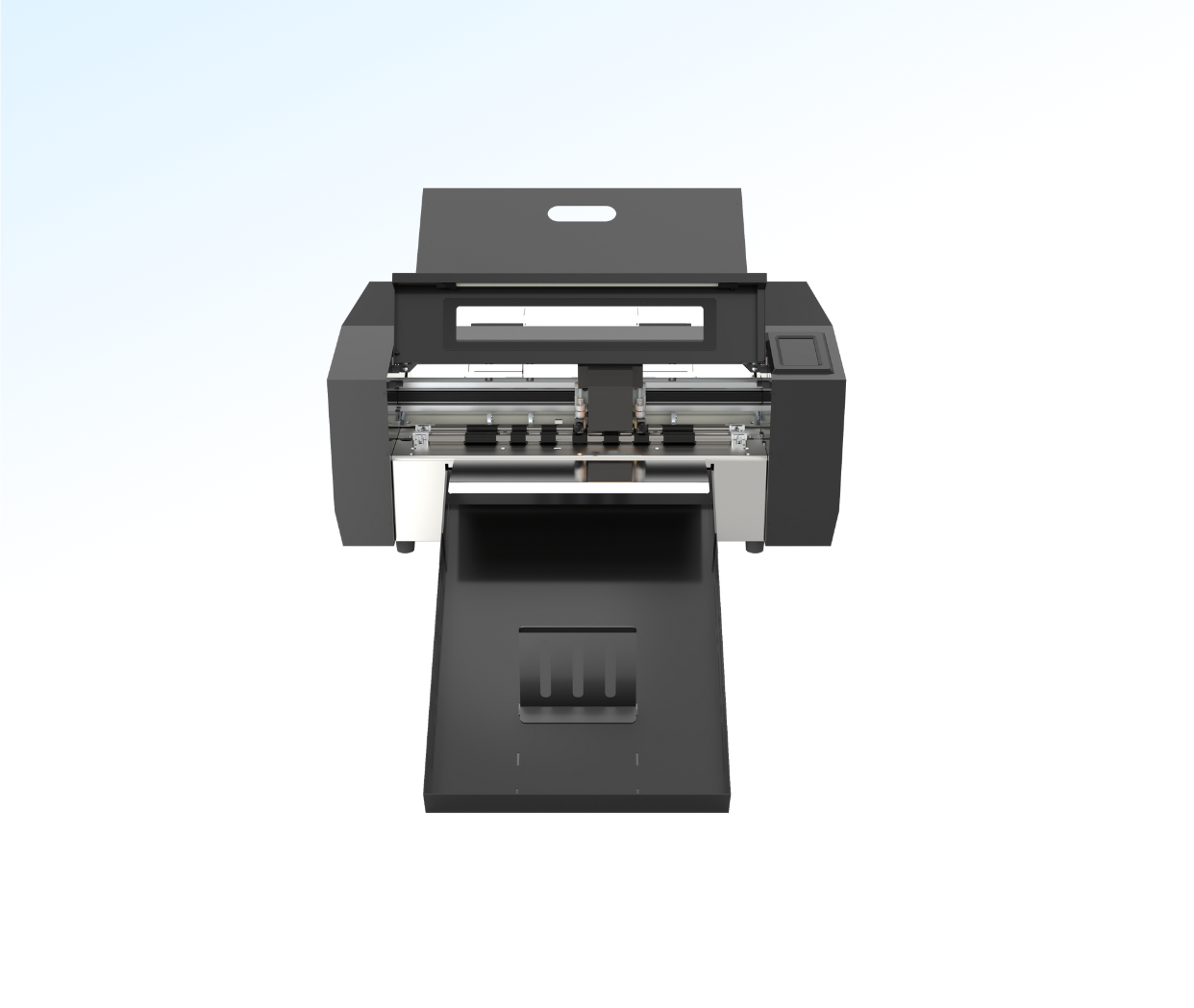

SmartCut-UC400

Sheet Cutter

The SmartCut-UC400 is a digital die-cutting machine, specifically the UC400 Ultra Dual Head model, designed for cutting, creasing, and shaping various materials like stickers, packaging, and paper.

★ Professional Cutting Performance Servo Motor Label Cutting Machine

  • One key calibration machine offset value, save time proofreading machine, save paper.
  • Voice coil cutting system ensures stable and fast cutting, greatly improving productivity.
  • Quickly detect reference mark positioning and cutting patterns with the camera.
  • Automatic feeding system, save time and labor.
  • The two cutter heads work simultaneously, while indentation and cutting.
Enquiry Download Brochure
Specification
Model UC400 Ultra Dual head
Maximum media Width 360mm
Max Cutting Width 350mm
Auto Feeding quanitity 150PCS
Motor Servo
Positioning mode CCD camera
interface U-disk/USB/Wif/LAN
Power < 100W
Maximum standby speed 1600mm/s
Maximum cut speed 1600mm/s
Max cutting thinckness 350g
Force 200g
Accuracy ±0.1mm
Repeat positioning accuracy ±0.082mm
Power Supply(V/A) 220v 50A
Working environment 5'C-35'C
Cuttable material All kinds of self-adhesive labels,printing graphics,etc.
OS/Software Windows XP 7/8/10
Product Size 770*445*350(mm)
Packaging Size 870*550*5709(mm)
