UC-500

Sheet Cutter

SmartCut- UC500

Absorbed Sheet Cutter

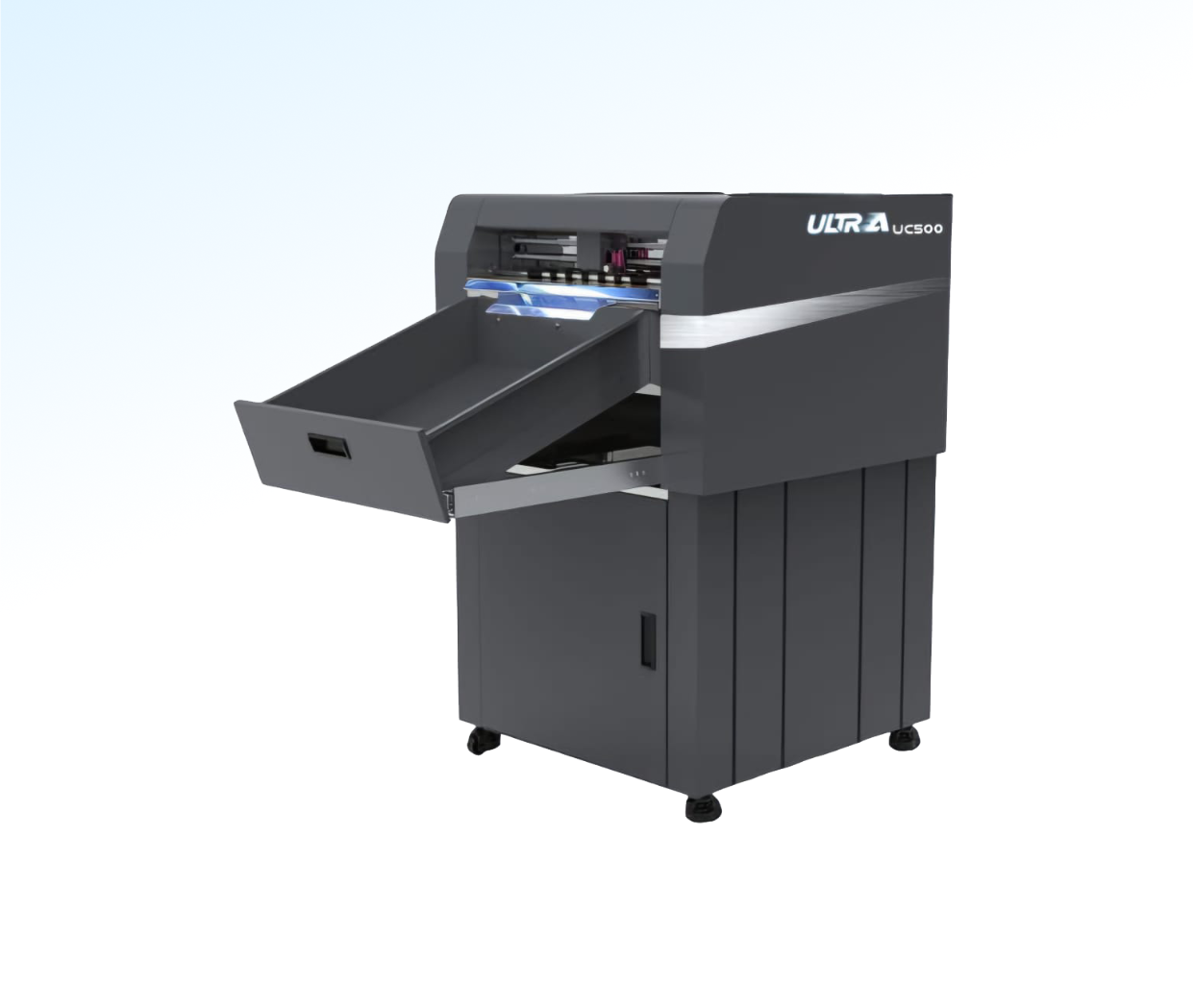

The Smartcut UC-500 is an automatic die-cutting machine designed for cutting labels, stickers, and similar materials.

  • Scan Code & Cut

  • Feeding Sensor

  • Labor saving

  • Automatic Feeding
Enquiry Download Brochure


Specification
Model Smartcut-UC500
Max Media Width 370mm
Max Cutting Width 370mm
Auto Feeding Quantity 1000 PCS
Max Moving Speed 1600mm/s
paper Thickness No More Than 1mm/400gsm
Interface U-DISC / USB CABLE / WIFI / LAN
Positioning HD Camera Automatic Positioning
Cutting tool Mold Crease + Cut, Kiss Cut + Die Cut
Ma.force 2000g
cut Precision +0.1mm
cut Precision +0.1mm
Repeat&POsitioning Accuracy +0.082mm
Power < 100w
Working Enivironment 5'c-35'c
Os/ Software Window XP 7/8/10, CoreDraw, Ai, Camera Cut Plug-in
Packing for Main body Part 975*975 *790mm, 60kgs
Packing for Bottom Support Part 935*915*880mm, 40kgs
